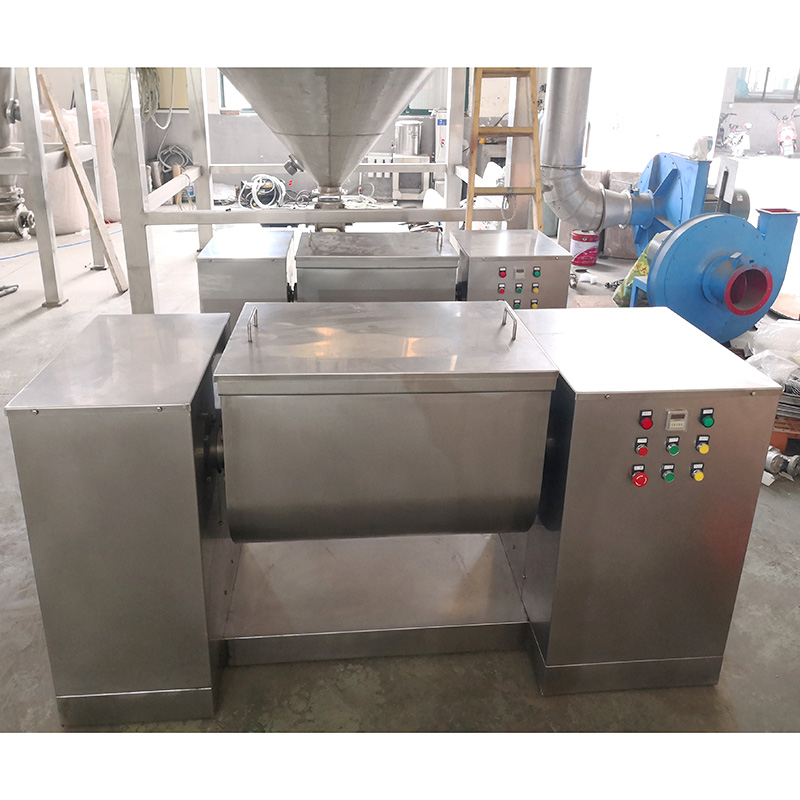

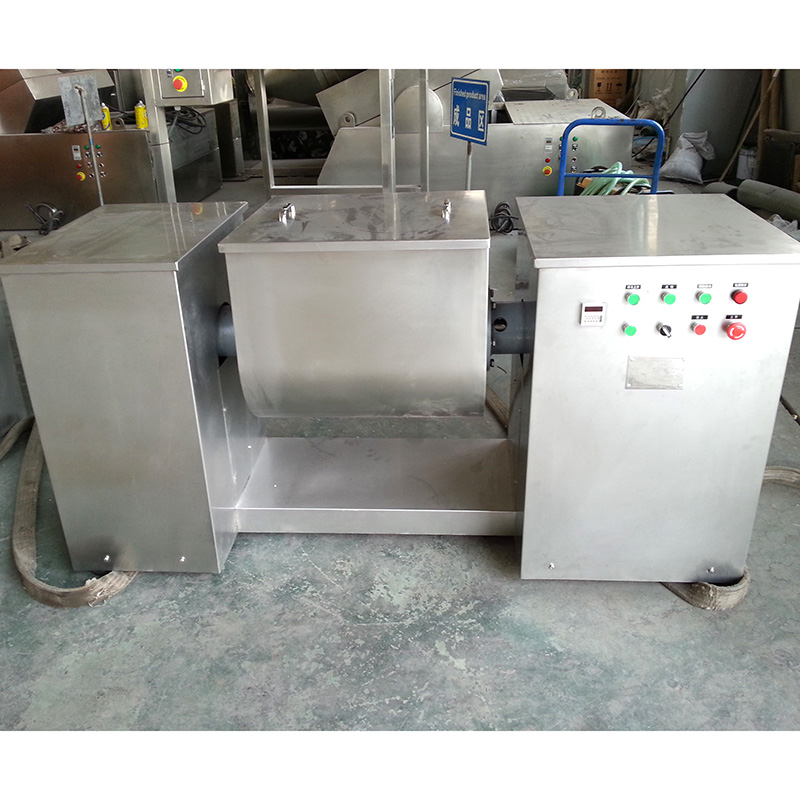

CH-100 Slot-Type Mixer

CH-100 Slot-Type Mixer

Whatspp:+86 15061746769
E-mail:haiming@haixinmill.com

Detail

Features
This machine is made entirely of stainless steel. The small gap between the impeller and the cylinder ensures thorough mixing without dead zones. Sealing devices at both ends of the stirring shaft prevent material leakage. The bearings are externally mounted, effectively preventing bearing burnout and material contamination caused by powder or liquid entering the bearings. Widely applicable to the pharmaceutical, chemical, and food industries, it complies with national GMP standards.



Main Applications
Widely used for mixing powdery or wet materials, ensuring uniform mixing of main and auxiliary materials in different proportions.



Technical Parameters

Machine Model CH--100 CH--150 CH-300
Paddle Formation S-type Single Paddle
Working volume L 70 100 210
Paddle speed rpm 24
Flip angle <105º
Dimensions mm 1380*600*1000 1480×600×1190 2200×700×1350
Net weight of machine kg 350 400 500
Stirring motor kw 2.2 3 5.5
